If your facility manufactures or handles electronic components, you know how devastating ESD (electrostatic discharge) damage can be. Just a small spark when handling boards or chips can cause latent defects or immediate failures. Yet ESD risks lurk everywhere – from clothing to carts to tools. Fortunately, specialised ESD tool balancers provide a simple yet effective solution to balance and dispense sensitive PCBs without any ESD danger.

As pioneers in ESD-safe tool handling, Tecna Balancers offers a full line of tool balancers engineered specifically for electronics assembly and semiconductor work. This comprehensive guide will explore ESD risks, how ESD tool balancers operate, their unparalleled benefits, and how to choose the right models to protect your sensitive components.

What Is ESD and Why Is It Harmful?

ESD refers to the sudden flow of electricity between two objects at different charge levels. This could involve your body and a tool, a board and a cart, etc. The rapid discharge generates an invisible spark with extremely localised heat that can vaporise micron-scale features on semiconductors and PCBs.

While ESD damage often has latent effects, it can also lead to immediate catastrophic failure. Either way, the resulting downtime, reduced reliability, and rework takes a heavy toll on electronics manufacturers. Industry experts estimate annual ESD losses over £4 billion just in the semiconductor sector.

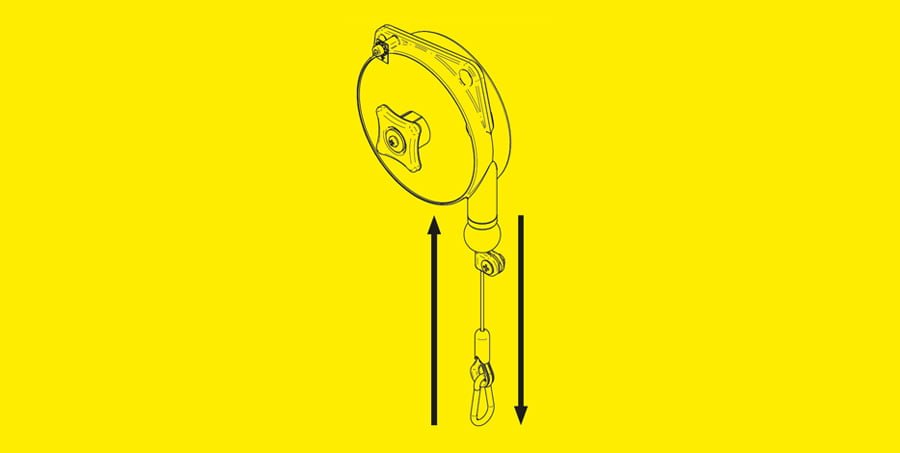

How Do ESD Tool Balancers Prevent Discharge Damage?

ESD tool balancers incorporate specialised conductive materials and grounding to safely manage sensitive PCBs, components, and assemblies. Key protective features include:

  • Dissipative housings – Prevent static buildup that could discharge to electronics.
  • Ground points – Provide a path to safely dissipate charges without sparking.
  • Grounding cables – Keep operators at the same potential as electronics via wrist straps.
  • ESD-safe cables – Eliminate insulation that could generate charge imbalance.
  • ESD-safe hooks – Prevent sparking if contact occurs with electronics.
  • ESD certification – Validated resistance properties per ANSI/ESD standards.

With these protections, ESD tool balancers safely equalise voltage potential and dissipate any charges without risk of sparking. Electronics remain stable and discharge-free during handling.

Key Benefits of ESD Tool Balancers

ESD tool balancers provide unparalleled benefits for electronics manufacturing and handling:

    • Protect sensitive electronics from destructive ESD during production and assembly.
    • Allow safe handling of PCBs without constant grounding wires or ESD risks from traditional balancers.
    • Simplify material movement by balancing component trays and assemblies to prevent tipping or contact.
    • Permit precise positioning without re-grounding operators after every motion.
    • Reduce equipment failures and associated downtime by eliminating ESD damage.
    • Improve yields by minimising latent ESD defects that emerge after shipping.
    • Safely integrate material handling robots by controlling ESD risks.

Any process involving electronics components or boards benefits tremendously from ESD tool balancers.

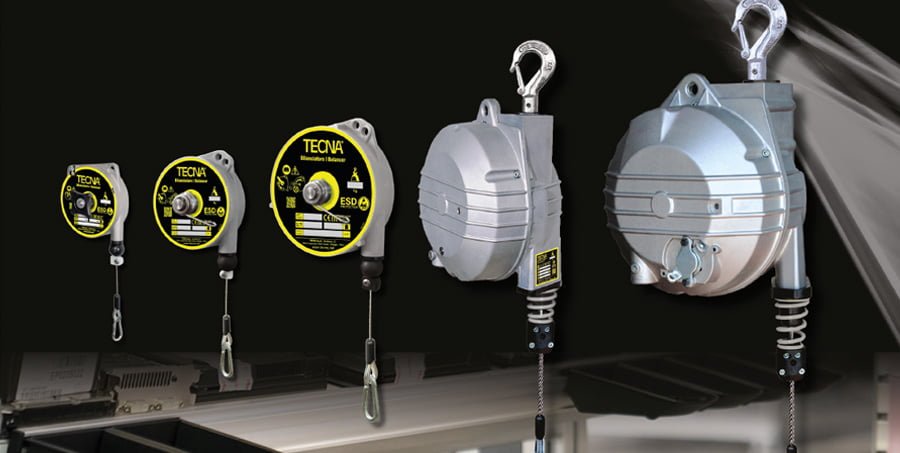

ESD Balancers

Typical ESD Tool Balancer Applications

ESD tool balancers enable smooth, safe handling in diverse electronics workflows:

  • Pick and place operations – Smoothly position component trays.
  • PCB population – Present boards without operator re-grounding.
  • IC and chip production – Handle wafers and substrates without sparking.
  • SMD assembly – Protect tiny surface mount parts from ESD.
  • Quality control – Inspect assemblies without discharge risk.
  • Packaging areas – Dispense protective carriers without ESD events.
  • Rework stations – Handle boards safely during remediation.

For any sensitive electronics processes, specially designed ESD tool balancers are an indispensable best practice.

Selecting the Right ESD Tool Balancer

With capacities from 0.5 kg to over 80 kg, Tecna Balancers offers a full spectrum of ESD tool balancer models. Consider these key factors when selecting optimal models:

  • Load Weight – Tool balancer capacity must accommodate maximum load.
  • Mounting Height – Consider operator ergonomics and range of motion needed.
  • Cable Length – The cable must reach the full work envelope with no tension.
  • ESD Standards – Verify balancer conforms to ANSI/ESD S20.20 or IEC 61340-5-1.
  • Environment – Explosion-proof models available for hazardous areas.
  • Portability – Choose removable mounting plates for easy repositioning.
  • Accessories – Add balancer rails, swivels, and stops to customise the setup.

With the right models and configuration, ESD tool balancers integrate seamlessly into your electronics workflow. Contact our experts today.

Proper Use of ESD Tool Balancers

To achieve full ESD protection, use your ESD tool balancers with the following best practices:

  • Maintain ESD safe workstation requirements including grounded dissipative surfaces.
  • Ensure operators wear grounded wrist straps to equalise potential with electronics.
  • Only use ESD-safe handling equipment like dissipative carts and boxes.
  • Keep insulative items like plastics, foams, and packaging out of work zones.
  • Set spring tension to precisely counterbalance loads to prevent uncontrolled motion.
  • Avoid shocks or impacts to balancers or loads that could generate electrostatic charges.
  • Visually inspect cables and hooks periodically for any damage that could compromise ESD safety.
  • Follow manufacturer-recommended maintenance and cleaning methods to sustain ESD protective properties.

Proper use, care, and inspection help sustain maximum ESD protection from your tool balancers over many years.

ESD Tool Balancers

Compliance Verification of ESD-Protected Zones

Implementing ESD tool balancers is one element of creating a fully ESD-protected zone. Ensure your EPA meets all ESD safe standards:

  • Check flooring and worksurfaces have proper conductive and dissipative properties per ANSI/ESD S20.20.
  • Verify all carts, racks, and equipment are ESD-safe and clearly labeled.
  • Confirm wrist strap monitoring systems are correctly grounded and tested properly.
  • Maintain 40% – 60% humidity levels year-round to prevent static buildup.
  • Use ionisation systems if needed to neutralise static charges in low humidity.
  • Conduct audits to measure electrostatic field levels and flooring resistance range.
  • Post signage clearly delineates the entrance and boundaries of EPA areas.

With rigorous compliance checks, employees remain vigilant about sustaining proper ESD zones.

The Importance of ESD Control for Electronics

In our increasingly electronic world, ESD awareness is more crucial than ever. A few small sparks can lead to millions in damages from latent failures or immediate destruction of sensitive components. Yet ESD dangers lurk everywhere – from clothing to tools to improper grounding. That’s why purpose-built ESD tool balancers are indispensable for eliminating risks.

By investing in a comprehensive ESD avoidance strategy incorporating specialised tool balancers, wrist straps, audits, and training, manufacturers gain peace of mind knowing their sensitive electronics remain safe from static discharge. The substantial savings in reduced defects and downtime delivers an impressive ROI.

Don’t settle for general tool balancers lacking ESD features. Partner with the experts at Tecna Balancers to implement ESD tool balancers that seamlessly improve your workflow while providing certified protection. Discover how simple innovations can make a major impact. Contact us today!
