If your employees regularly handle heavy machinery, power tools, or other cumbersome equipment, you know the toll it takes on their bodies over time. The constant lifting, maneuvering, and manipulation of heavy objects inevitably lead to fatigue, strained muscles, and repetitive stress injuries. However, there’s a simple yet ingenious solution to make tool handling nearly effortless – the spring balancer.

As experts in ergonomic tool suspension, we at Tecna Balancers want to provide you with the ultimate guide on spring balancers. We’ll explain what they are, their unmatched benefits, how to select the right models, typical applications, and frequently asked questions. Read on to learn how spring balancers can transform your workspace for happier, healthier, and more productive employees.

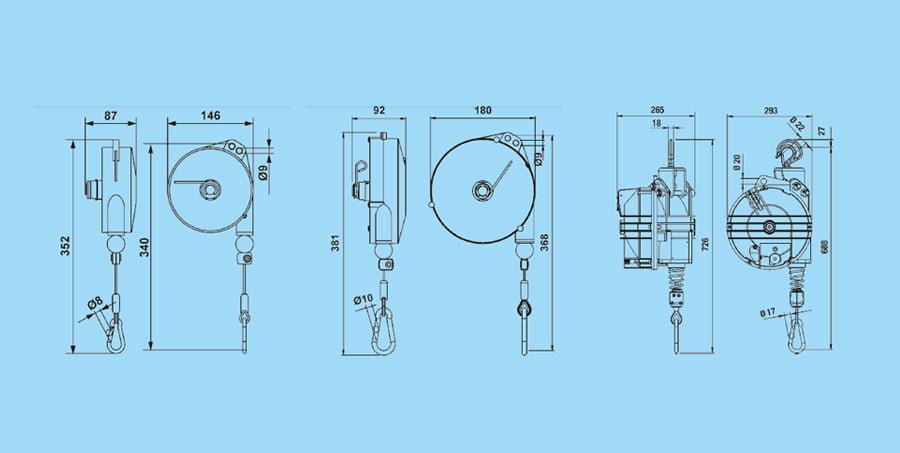

Tecna Tool Balancers

Choosing the Right Spring Balancer Models

With such a broad range of spring balancer capacities, cable types, and features available, selecting the ideal models for your needs requires careful consideration. Follow this guide to choose the best spring balancers for your workplace:

Match Capacity to Load

The most important factor is ensuring the spring balancer is rated for at least the total weight of the tools or objects being suspended. As a rule of thumb, choose a capacity at least 20% greater than the maximum expected load for optimal balancing performance. Loads exceeding the rated capacity can overpower the spring mechanism.

For multi-tool applications, calculate the total combined weight of all items the spring balancer will handle to determine the minimum capacity required.

Consider Vertical Range of Motion

Consider how much vertical distance the operator needs to maneuver the suspended tool or equipment through the work envelope. The spring balancer cable must extend long enough to provide the required range of motion.

Standard cable lengths range from 1 to 3 meters. Longer custom lengths are possible. Mount the spring balancer directly overhead with the cable retracted when not in use.

Select Mounting Style

We offer multiple mounting options to suit different work environments:

  • Eyebolts – Simple anchors that bolt into ceiling structures.
  • Clamp collars – Attach around pipes or beams.
  • Wall brackets – For mounting spring balancers on walls or columns.
  • Ceiling hangers – Suspend from ceiling grid wireway systems.
  • Balancer rails – Overhead mounting tracks for multiple balancers.

For large equipment, consider gyroscopic retractors that mount on the floor with extended columns.

Determine Cable Type

We offer spring balancer cables in carbon steel, stainless steel, and synthetics like Dyneema and nylon:

  • Carbon steel is the most economical option for general use.
  • Stainless steel – Best for washdown and corrosion resistance.
  • Synthetic – Chemical and abrasion resistant. Won’t scratch surfaces.

Synthetics cost more but provide advantages in certain caustic or sterile environments.

Consider Explosion-Proofing

For hazardous locations with flammable vapors or combustible dust present, specify ATEX-rated spring balancers to prevent ignition risks.

Our explosion-proof models have spark-resistant aluminum housings and dissipative cables to avoid static buildup. Intrinsically safe for Class I Div. 1 environments.

Evaluate Precision Needs

Some tasks require finely controlled positioning of suspended tools. Specify a spring balancer with higher spring tension for slower extension and retraction speed. This allows more precise tool placement rather than quick, jerky motion.

Accessorise for Tool Changes

For frequent tool changes, add a clevis hook adapter. This allows operators to detach tools from the spring balancer cable without needing to adjust the spring tension.

Choose Added Safety Features

Select spring balancer models with secondary retention cables, centrifugal brakes, and other safety mechanisms to arrest falls in the unlikely event of failure. This prevents dropped tools or loads.

With Tecna Balancers’ extensive product selection and expertise, we can match you with the ideal spring balancers for your industry, workspace, and applications. Contact us today!

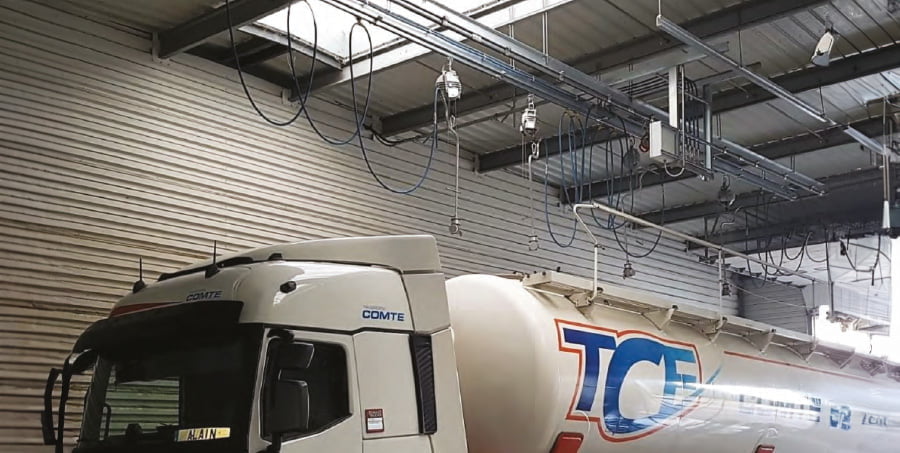

A proper set of Spring Balancers for Safety & Efficiency

Once you’ve selected the appropriate spring balancer models, proper installation is key to realising their benefits. Follow these best practices when setting up your spring balancers:

Securely Mount Housing

Use anchors or clamp collars to firmly fix the spring balancer housing in place at the desired mounting location. Ensure it can support the rated load. Improper installation can lead to failures.

Position the mounting point directly above the work zone so the cable retracts neatly out of the way. For large areas, consider balancer rails.

Adjust Spring Tension

After mounting, attach the tool or object to the cable hook. Then carefully turn the tension adjustment knob until the tool floats weightlessly in a neutral balanced state. Avoid over-tensioning.

For multi-tool setups, set tension for the heaviest tool. Use clevis hook adapters for quick tool changes without readjusting.

Allow Full Range of Motion

Ensure the cable extends long enough to enable the required vertical range of motion and tool positioning without pulling taught. Consider using a longer cable if needed.

Don’t allow retracted cables to become tangled or kinked. Use cable stops if needed.

Inspect Frequently

Check spring tension, cable connections, and pulleys regularly for signs of wear. Lubricate moving parts. Test retraction mechanism operation.

Replace any defective parts immediately. Regular inspection prevents failures.

Following these installation and maintenance best practices will keep your spring balancers performing safely and efficiently year after year. Contact Tecna Balancers to learn about our installation services.

Spring Balancers

Enhancing Workflow Efficiency With Proper Tool Positioning

Simply installing spring balancers alone doesn’t guarantee maximum efficiency gains. Tool positioning has a major impact on ergonomics and workflow:

Position Frequently Used Tools at Chest Level

Heavy tools supported at chest height can be handled safely and precisely without excessive reaching or bending. This minimises neck and back strains.

Store Less Used Tools High and Out of the Way

Retracting rarely needed tools towards the ceiling reduces clutter in the primary work zone. But they remain quickly accessible when needed.

Consider User Height and Mobility

Mount spring balancers at appropriate heights for each employee. Taller mounts for standing tasks, lower mounts for seated tasks.

Reduce Twisting Motions

Position tool mounts to enable users to face the workspace directly without excessive twisting. Angled balancer rails can help.

Watch Out for Pinch Points

Make sure spring balancer cables don’t cross over or through pathways. This avoids tripping risks.

Select Optimal Cable Anchor Points

Consider both tool positioning needs and structural mounting locations. Look for strong anchors aligned above the work area.

Properly laid out tool positioning improves workflow, quality, and productivity in any manual handling tasks. Our experts can help optimise your workspace.

Maintenance Tips to Extend Spring Balancer Lifespans

With regular inspection and minor maintenance, spring balancers will provide decades of reliable service. Here are our top tips for keeping them operating like new:

  • Inspect cables and pulleys for fraying and damage. Replace worn parts immediately.
  • Check spring tension and recalibrate if tools no longer stay balanced.
  • Lubricate pulleys and swivel joints with light oil to prevent binding.
  • Verify the smooth operation of the retractable cable reel. Clean out any debris.
  • Confirm safety devices like brake mechanisms are functioning properly.
  • Check mounts and anchors for looseness or deterioration. Tighten or replace as needed.
  • Wipe down the balancer housing and cable periodically using a mild cleaning solution.

Following basic maintenance practices extends the lifespan of your spring balancer investment and ensures safety. Our repair services can also refresh aging balancers. Get in touch with any questions!

Leveraging Spring Balancers for a Healthier, More Productive Workspace

By essentially eliminating the manual effort of repeatedly lifting and positioning heavy machinery, spring balancers provide invaluable ergonomic assistance. Operators remain accurate and focused without succumbing to fatigue or risking injury.

With expert product selection and proper installation, spring balancers integrate seamlessly into your environment. Operators quickly adjust to the free-floating tools, working faster and with greater precision. Output and morale improve as strain decreases.

Don’t let tool handling take a physical toll on your workforce. Experience the transformative power of spring balancers for yourself. Contact the experts at Tecna Balancers today to equip your facility with the latest ergonomic solutions.
